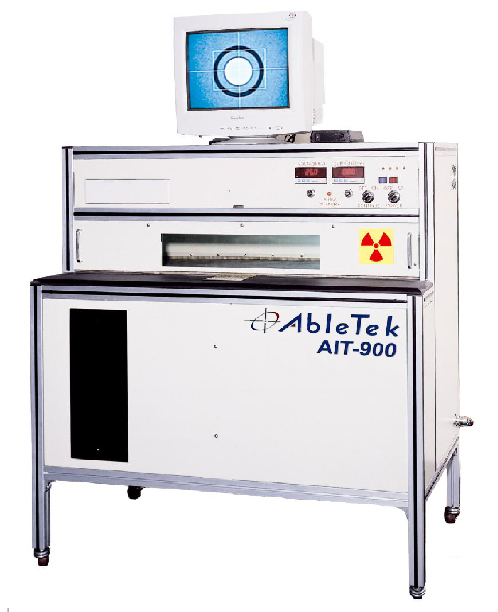

X RAY INSPECTION MACHINE

AIT-900

PCB size: 530x530(mm) with no observation dead zone; machine width: 1.1 meters

Three-point round circle forming

Measurable board thickness range: 0.1~4.0mm (copper thickness range: 0.5-5 OZ)

Point-to-point pitch measurement

Concentric circles pitch measurement

Self-calibration function for accuracy correction

Binarization

Image filtering frequency adjustment

High-pass filtering

Low-pass filtering

Image flipping function

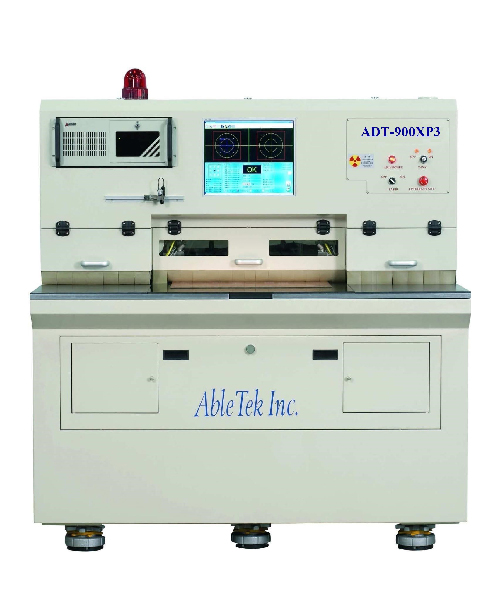

X RAY TARGET DRILLING MACHINE

ADT-900XP3

PCB size: 530x530(mm) with no observation dead zone; machine width: 1.1 meters

Three-point round circle forming

Measurable board thickness range: 0.1~4.0mm (copper thickness range: 0.5-5 OZ)

Point-to-point pitch measurement

Concentric circles pitch measurement

Self-calibration function for accuracy correction

Binarization

Image filtering frequency adjustment

High-pass filtering

Low-pass filtering

Image flipping function

Drill hole dia.j 3.175mm ~ 5.0mm

Panel thickness 0.3 ~ 8.0mm

Panel size X/Y : 310*210mm(min.)

780*670mm(max.)

Drilling pitchX : 300mm(min.) ~ 740mm (max.)

Y : 0 ~ 600mm

Field of view10.0 X 10.0mm

Z-stroke control Selectable speed and height

Throughput(*)7 s./3-hole (3rd target NC drilling)

16 s./7-hole (inner 3 in NC drilling)

Spindle speedProgrammable from 0 to 40,000 rpm

Drilling accuracy <±15mm (central compensation drill)

<±10mm (mark center)

Main Controller Industrial standard Pentium PC

Spindle type Brushless DC servo motor

Spindle run-out accuracy <1.0mm

Spindle torque700 gf-cm@100~33,000rpm

X-ray generator safety U.S.A radiation safety

Data Sheet 5900-0063 Rev. 1

X-ray tube 50KV, 1.0mA

Max. X-ray leakage 0.5 mSv/H(on system surface)

X-ray spot size 60~80 microns

Operation noise <60 db

Operation environment 15~25oC, 40~80% humidity

Power AC220V ±10%,50/60HZ,30A,1P2W

Compressed 5.0kg/cm, 550 l/min.

Vacuum exhaust 6m3/min, j 50mm X 2

Dimension D2747/W1600/H1662mm

Weight 3,000Kg

OptionsBar-code reader utility and software

Group sorting software
